A 30° Equatorial Sequence of Major Tectonic and Geographic Features

A particularly striking feature of the proposed mantle-convection framework is a regular sequence of principal lower-mantle divisions along the equator. Taking 21.16°W as the theoretical reference longitude beneath the central Atlantic, equivalent divisions occur at intervals of exactly 30°. Moving eastward around the Earth, the relevant sequence considered here is:

1. 111.16°W — East Pacific Rise
2. 81.16°W — western margin of South America
3. 51.16°W — Amazon mouth and northeastern South America
4. 21.16°W — central Atlantic / Mid-Atlantic Ridge
5. 8.84°E — western coast of equatorial Africa
6. 38.84°E — East African Rift region
7. 68.84°E — Central Indian Ridge
8. 98.84°E — western margin of Indonesia
9. 128.84°E — eastern Indonesia
10. 158.84°E — possible additional boundary east of Papua New Guinea

These are theoretical longitudes. The model does not require the principal surface expression to occur precisely on each lower-mantle division. Upper-mantle upwelling lines occur approximately 1.5° to either side, while the effects of the adjacent convection roll may be expressed as much as 3° from the principal division. The appropriate comparison is therefore with a narrow longitudinal belt rather than with a geometrically infinitesimal line.

1. 111.16°W — East Pacific Rise

The first point lies in the eastern Pacific and corresponds closely to the East Pacific Rise, one of the Earth’s major oceanic spreading systems. Around the equatorial and southeastern Pacific, the East Pacific Rise occupies approximately the 110°W region, although its longitude varies with latitude. The theoretical longitude of 111.16°W therefore falls within about one degree of the broad ridge system. Studies of the eastern tropical Pacific commonly place the Rise near 110°W, while the EPR can be followed continuously southward from the equatorial region.

This is an important starting point because here the expected mantle division is expressed by an unmistakable oceanic spreading system. In the convection-roll interpretation, the surface ridge need not coincide exactly with the lower-mantle division; displacement toward an adjacent upper-mantle upwelling line would be expected.

2. 81.16°W — the western margin of South America

Thirty degrees farther east gives 81.16°W. At the equator this lies immediately west of the coast of Ecuador. Ecuador itself straddles the equator and its western boundary is the Pacific continental margin.

This is a fundamentally different tectonic environment from the East Pacific Rise. Instead of oceanic spreading, the eastern Pacific basin terminates against the South American margin, where the Nazca Plate converges with South America. Thus, within one 30° interval, the system passes from a major zone of crustal production to the continental margin toward which that oceanic plate moves.

The correspondence should not be interpreted as a claim that 81.16°W itself is the trench axis. Rather, it marks the equatorial longitude of the broader western South American tectonic boundary zone.

3. 51.16°W — the mouth of the Amazon

The next theoretical division, 51.16°W, reaches the opposite side of South America near the great outlet of the Amazon River.

This point is different from most of the others because the dominant surface expression is not an active plate boundary. Nevertheless, the Amazon mouth marks one of the major geological and physiographic transitions on Earth: the enormous Amazon drainage system reaches the Atlantic margin here. NASA describes the Amazon as carrying the largest freshwater discharge of any river, delivering roughly one fifth of global river discharge to the oceans.

Within the proposed framework, the significance would therefore not necessarily be present-day faulting. The question is whether the continental-scale drainage architecture, sedimentary basin and Atlantic continental margin preserve a longer-term structural influence associated with the same regular mantle division.

This point consequently needs to be treated more cautiously than the active ridges and rifts.

4. 21.16°W — the central Atlantic

Another 30° east brings the sequence to its reference point, 21.16°W.

This correspondence is particularly close. The Mid-Atlantic Ridge crosses the equatorial Atlantic in the vicinity of 21–22°W. For example, a large 2022 earthquake classified by the USGS as occurring on the central Mid-Atlantic Ridge was located at 0.934°S, 21.716°W. The theoretical value of 21.16°W is therefore within roughly half a degree of this active ridge position.

In the model, this longitude represents a principal lower-mantle division, while the actual surface spreading system may occupy the adjacent 1.5° roll positions. This distinction is important: the geometric reference is defined at depth, while the observable ridge records the response of the upper mantle and lithosphere.

5. 8.84°E — western equatorial Africa

The next 30° step gives 8.84°E, which reaches the Atlantic coast of equatorial Africa near Gabon. Independent geographical data place the equatorial portion of Gabon between approximately 9°E and 14°E, making 8.84°E essentially a coastal or immediately offshore position. Thus the 30° sequence produces another striking basin-scale relationship:

South American Atlantic margin → Mid-Atlantic Ridge → African Atlantic margin, at intervals of approximately 30°.

This does not mean that the Atlantic basin is geometrically symmetrical in conventional plate-tectonic terms. Rather, it suggests that the theoretical mantle sequence intersects three very different parts of the Atlantic system: one continental margin, the spreading axis, and the opposite continental margin.

6. 38.84°E — the East African Rift region

The next theoretical lower-mantle division is 38.84°E. Here the distinction between the lower-mantle division and the surface response becomes particularly important. The main Kenya Rift at the equator does not lie at 38.84°E. Its axial region is farther west. Lake Bogoria, for example, lies at approximately 36.05–36.12°E immediately north of the equator, within the central Kenya Rift. However, the model predicts:

38.84°E — principal lower-mantle division
37.34°E — upper-mantle upwelling line
35.84°E — outer influence/downwelling side of the adjacent 1.5° roll

The last value, 35.84°E, falls remarkably close to the active Kenya Rift. The central Kenya Rift itself is a roughly 100-km-wide asymmetric extensional structure in this region.

Seismic and gravity studies along the equator have additionally suggested that the elevated East African plateau requires a regional mantle contribution and is compatible with dynamic support by mantle convection. This makes the African point particularly useful for distinguishing the deep theoretical division from its displaced lithospheric expression.

7. 68.84°E — the Central Indian Ridge

Thirty degrees farther east lies 68.84°E, almost directly on the active ridge system of the central Indian Ocean. The Central Indian Ridge extends northward from the Rodrigues Triple Junction toward the Carlsberg Ridge. Near the equatorial region it lies broadly between 67°E and 69°E. Published ridge-axis locations include approximately 1.19°S, 67.52°E, and farther south several segments occur between about 68.1° and 68.6°E.

The theoretical 68.84°E position therefore falls comfortably within the ±1.5° influence interval and extremely close to the actual spreading system.

Together with the Mid-Atlantic Ridge and East Pacific Rise, this gives the sequence three major oceanic spreading systems separated by intervening continental and tectonic domains.

8. 98.84°E — western Indonesia

At 98.84°E, the sequence reaches the western Indonesian region, close to Sumatra and the Sunda convergent margin.

This is no longer a spreading environment. Southwest of Sumatra, the Indo-Australian plate converges with the Sunda plate along the Sunda–Java trench system. The USGS describes this as part of an immense collision zone extending from the Indonesian region toward the Himalaya and notes the intense seismicity and volcanism produced by the Sumatra–Andaman subduction system.

The theoretical longitude therefore lies near one of the Earth’s major transitions from Indian Ocean lithosphere into the Indonesian convergent system.

9. 128.84°E — eastern Indonesia

Another 30° east gives 128.84°E, in the exceptionally complex tectonic region of eastern Indonesia, close to the Molucca Sea–Halmahera system.

This is one of the most unusual convergent environments on Earth. The Molucca Sea plate has been consumed by oppositely directed subduction beneath the Sangihe and Halmahera arcs, producing an active arc–arc collision. Modern studies describe the Molucca Sea as one of Southeast Asia’s most complicated tectonic regions and document the interaction of the Philippine Sea, Eurasian/Sunda and Australian plate systems.

A USGS regional tectonic map of the central Molucca Islands uses 128°E as its central meridian and shows subduction zones, strike-slip faults, thrusts and volcanic arcs concentrated through this longitude range. Thus the 128.84°E point corresponds not merely to the eastern edge of Indonesia geographically, but to a major zone of tectonic reorganisation.

10. 158.84°E — a possible additional point east of Papua New Guinea

The next step, 158.84°E, is particularly interesting because it lies east of Papua New Guinea in the Woodlark–Solomon region. This point has not yet been incorporated into the principal sequence in the same way as the preceding nine because the geological relationships are much more complicated. Nevertheless, there is clearly major tectonic and magmatic activity within the predicted belt.

The USGS places the Woodlark Basin between approximately 157° and 159.5°E, directly encompassing the theoretical longitude of 158.84°E. The basin contains the boundary between the Solomon Sea and Australian/Woodlark plates and is an active extensional system. Immediately farther east, the Guadalcanal segment of the Solomon plate boundary occupies approximately 159–161°E.

The broader Solomon system combines active seafloor spreading, subduction of young Woodlark lithosphere, microplate motion, intense seismicity and interaction with the Ontong Java Plateau. The USGS tectonic synthesis shows spreading across the Woodlark Ridge and subduction along the Solomon system, while the Solomon arc has experienced very high levels of large-earthquake activity.

The importance of this tenth point is therefore not that a single simple plate boundary lies precisely at 158.84°E. Rather, the predicted 158.84°E ±3° belt coincides with an exceptionally active zone in which spreading, subduction, arc volcanism and microplate deformation interact. For this reason, 158.84°E should probably be retained as a candidate tenth equatorial node, even if its precise geological expression remains unresolved.

The larger pattern

The sequence is noteworthy because the theoretical coordinates are generated independently of the geological features:

111.16°W → 81.16°W → 51.16°W → 21.16°W → 8.84°E → 38.84°E → 68.84°E → 98.84°E → 128.84°E → 158.84°E.

Across these ten consecutive 30° positions one encounters, in order: East Pacific spreading → South American continental margin → Amazon/Atlantic continental margin → Mid-Atlantic spreading → African continental margin → East African rifting → Indian Ocean spreading → Sunda subduction → Molucca arc collision → Woodlark–Solomon spreading/subduction.

The geological processes are therefore not of one type. Some points correspond to spreading ridges, others to continental margins, rifts, subduction systems or complex collision zones. What they potentially have in common is their position relative to a regular deep-mantle framework.

This distinction is central to testing the model. The proposed lower-mantle divisions should not be expected to produce identical structures everywhere. The lithosphere above them differs greatly in age, thickness, composition and pre-existing tectonic architecture. The test is instead whether major changes in tectonic organization occur repeatedly within the predicted ±1.5° to ±3° belts around an independently defined 30° sequence.

The correspondence at 21.16°W, 68.84°E and approximately 111.16°W is particularly interesting because all three are associated with major oceanic spreading systems. The 38.84°E case provides a different and potentially important test: the lower-mantle division itself lies east of the Kenya Rift, while the predicted western influence line at 35.84°E approaches the actual rift axis closely. Eastern Indonesia at 128.84°E and the candidate point at 158.84°E show yet another manifestation, where the regular sequence enters some of the most structurally complicated convergent regions on Earth.

The Papua–Solomon point therefore deserves further investigation rather than premature classification. If 158.84°E ultimately proves to occupy a systematic position within the Woodlark–Solomon tectonic and magmatic system, it would extend an already remarkable 30° equatorial sequence by one further major tectonic node.

The 30° Equatorial Sequence and the ±3° Mantle-Roll Belts

Taking 21.16°W as a principal lower-mantle division, twelve equivalent divisions occur at exact 30° intervals around the equator. In the proposed convection-roll model, the surface expression does not necessarily coincide with the principal lower-mantle longitude. Upper-mantle upwelling occurs approximately 1.5° to either side, while geological effects of the adjacent roll may occur as far as 3° from the principal division.

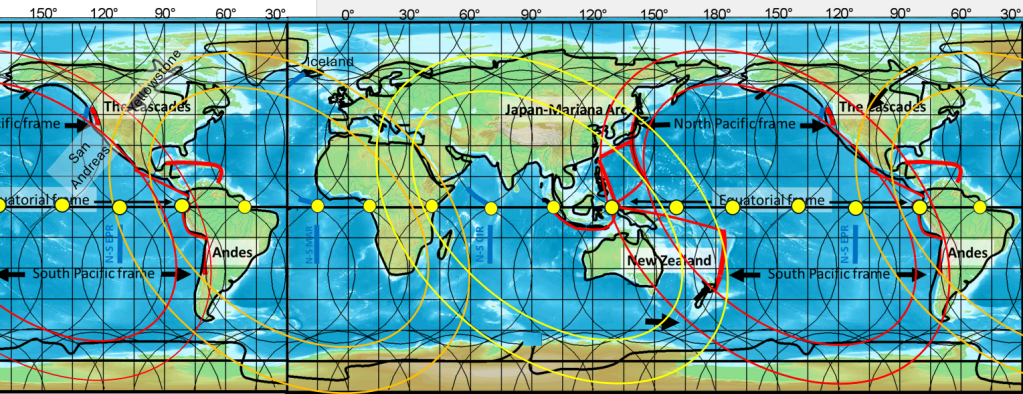

The 30° Equatorial Sequence (yellow dots on the map)

No.	Principal division / belt	Main geological correspondence	Interpretation
1	111.16°W ±3°	East Pacific Rise	Major oceanic spreading system; ridge axis lies within the predicted mantle-roll belt.
2	81.16°W ±3°	Western margin of South America	Nazca–South America convergence and subduction along the Ecuador–Colombia margin.
3	51.16°W ±3°	Amazon mouth / NE South America	Major continental and sedimentary transition at the Atlantic margin; less directly tectonic than most other points.
4	21.16°W ±3°	Equatorial Mid-Atlantic Ridge	Major spreading system. The ridge/transform system approaches the eastern side of the predicted belt, near 18.16°W.
5	8.84°E ±3°	West coast of equatorial Africa	Atlantic continental margin and inherited structural zone of the Gabon Basin.
6	38.84°E ±3°	East African Rift	Kenya Rift lies toward the western side of the belt, close to the predicted 35.84°E outer influence line.
7	68.84°E ±3°	Central Indian Ridge	Major Indian Ocean spreading system; the ridge axis falls within the predicted belt.
8	98.84°E ±3°	Western Indonesia / Sunda margin	Major subduction system west of Sumatra, with strong seismic and volcanic activity.
9	128.84°E ±3°	Eastern Indonesia / Molucca–Halmahera	Exceptionally complex arc–arc collision, opposing subduction systems and intense magmatism.
10	158.84°E ±3°	Woodlark–Solomon region	Broad magmatic and tectonic zone involving spreading, subduction, microplates and the Solomon arc.
11	171.16°W ±3°	Phoenix / Nova–Canton region	Major old Pacific fracture-zone system; Nova–Canton Trough lies remarkably close to the 168.16°W outer line.
12	141.16°W ±3°	Central Pacific	Weakest equatorial case; no major active plate boundary directly at the principal longitude, although important fracture-zone and volcanic structures occur within the wider region.

What stands out

The most striking feature is that the sequence does not repeatedly select the same type of structure. Instead it encounters very different manifestations of lithospheric deformation:

spreading ridge → subduction margin → passive continental margin → spreading ridge → passive margin → continental rift → spreading ridge → subduction → arc collision → spreading/subduction complex → fracture zone → intraplate volcanic/fracture-zone province.

That heterogeneity may actually be important for the model. If the 30° divisions represent a deep mantle framework, one should not necessarily expect identical surface structures. Oceanic and continental lithosphere respond differently, and the existing plate geometry determines whether a mantle-related influence is expressed as spreading, faulting, rifting, volcanism or enhanced deformation at a pre-existing boundary.

Three cases are particularly clean geometrically:

21.16°W: the Romanche/Mid-Atlantic ridge region approaches the predicted +3° position at 18.16°W.

38.84°E: the Kenya Rift near 36.1°E approaches the predicted −3° position at 35.84°E.

171.16°W: Nova–Canton Trough near 168.01°W approaches the predicted +3° position at 168.16°W.

There is also an important distinction at 148°E, which is not one of the 30° lower-mantle divisions. As we discussed, that longitude belongs instead to the strong tectonic line produced by the overlapping tectonic-ring geometry. Independent studies find major tectonic changes around 147–149°E: east of ~148°E the Papuan plate boundary becomes increasingly extensional, while around 147–148°E earthquake slip-vector orientations and microplate relationships change markedly.

So we now have two different geometrical systems that should not be mixed:

The 30° sequence describes the proposed regular lower-mantle/convection-roll framework.

The ~29°E → ~91°W → ~148°E set arises from the geometry of the tectonic rings and appears to identify unusually strong zones of tectonic reorganisation.
